Height: 2000mm or 2100mm
Width: 1000mm
Depth: 1800mm
*Cubicle dimension can be variable upon design
PureBix

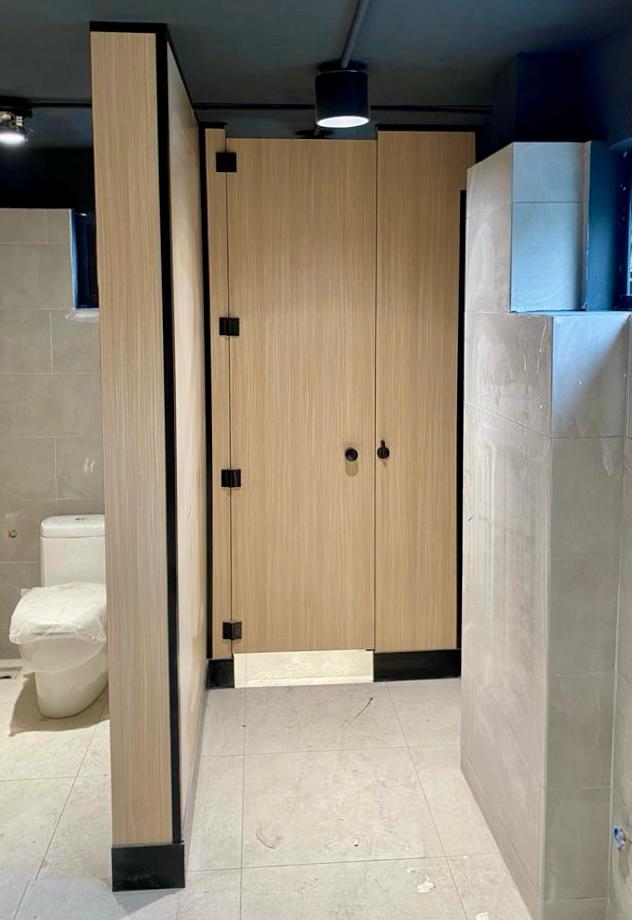

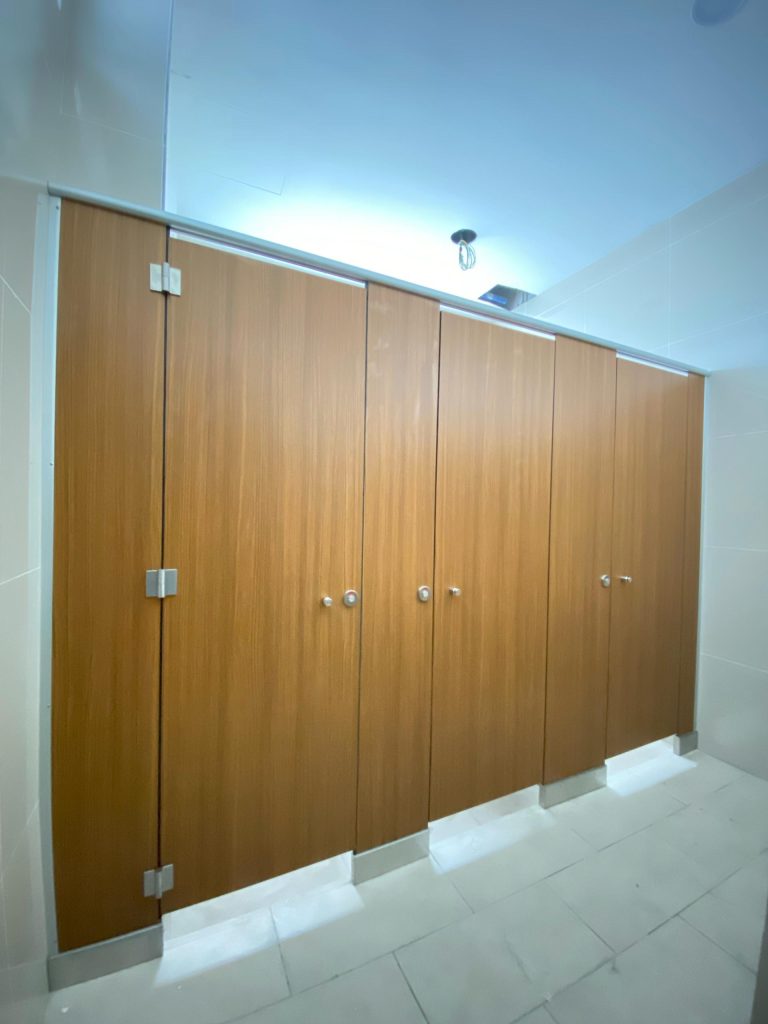

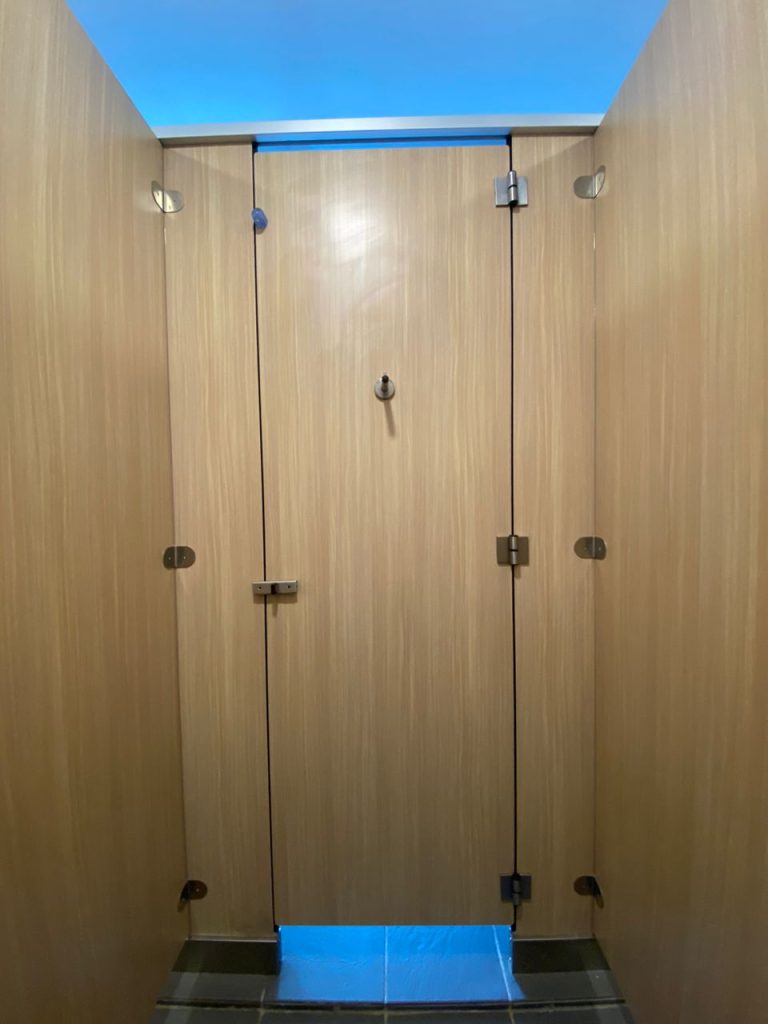

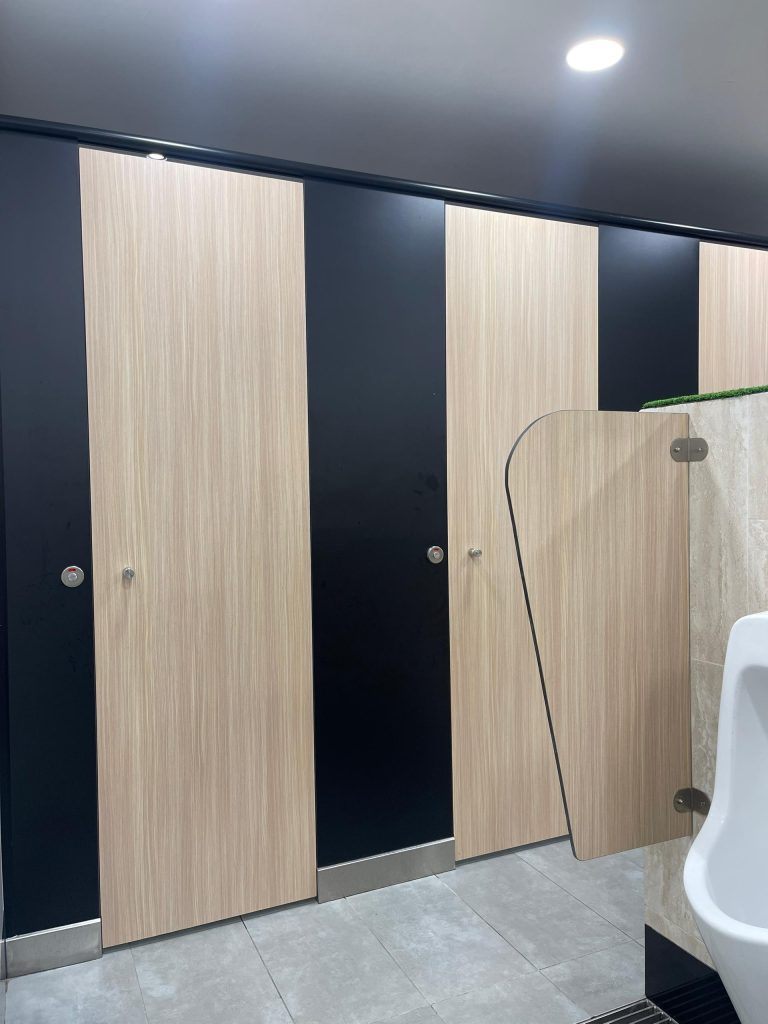

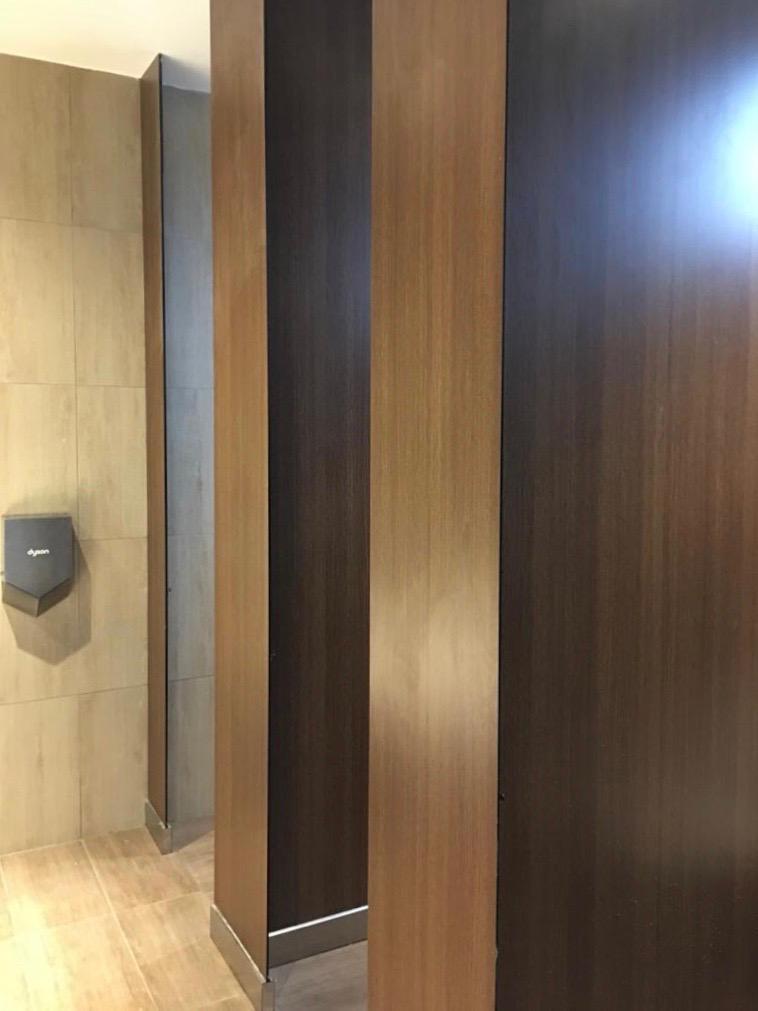

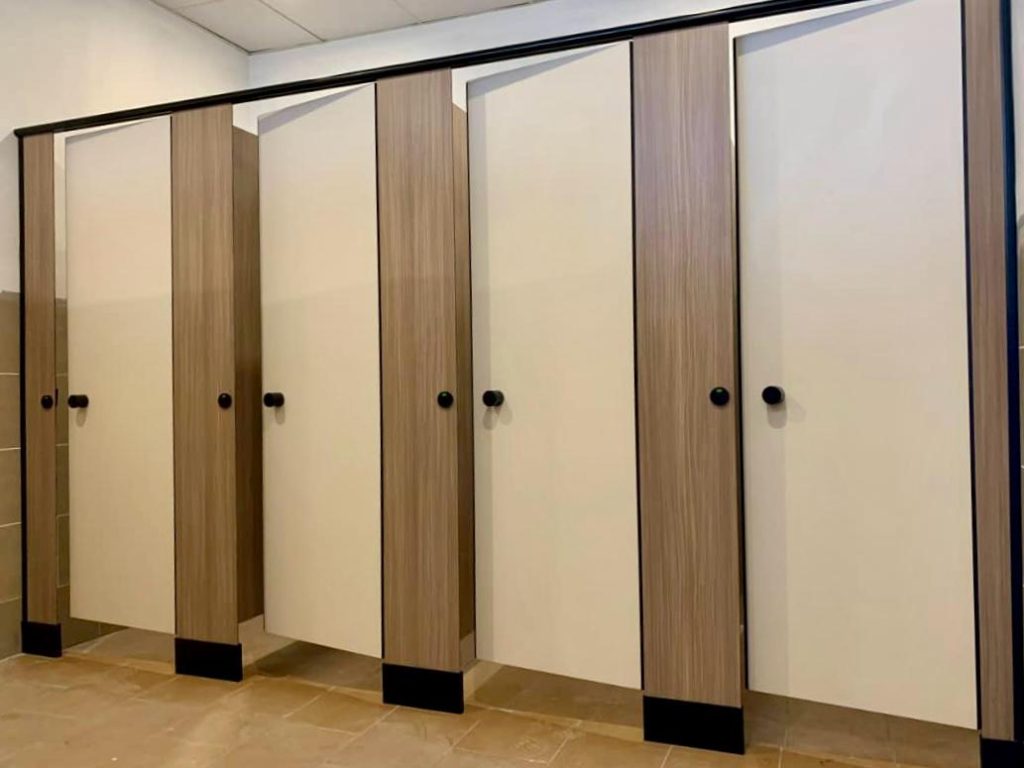

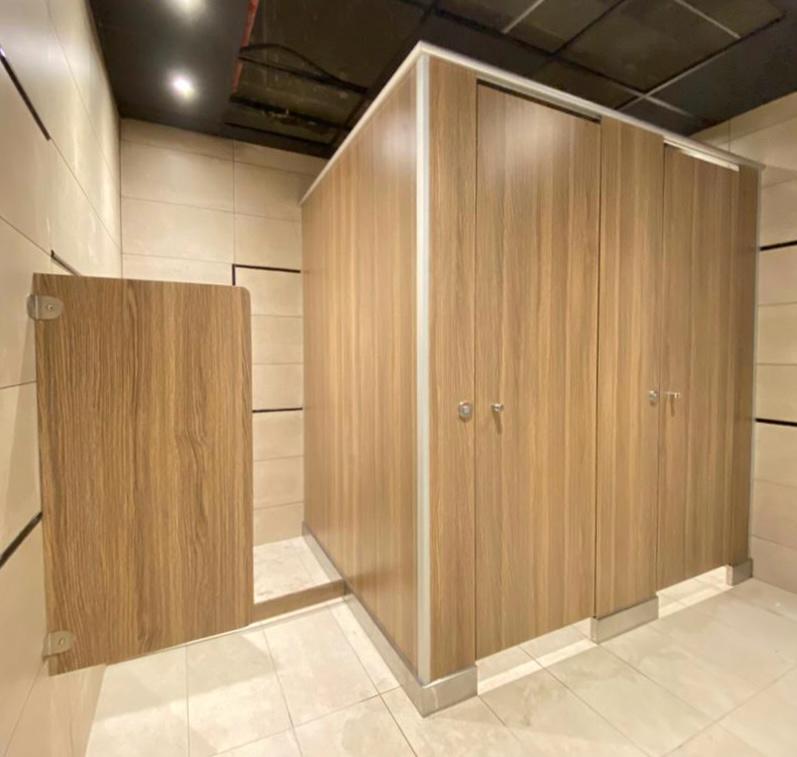

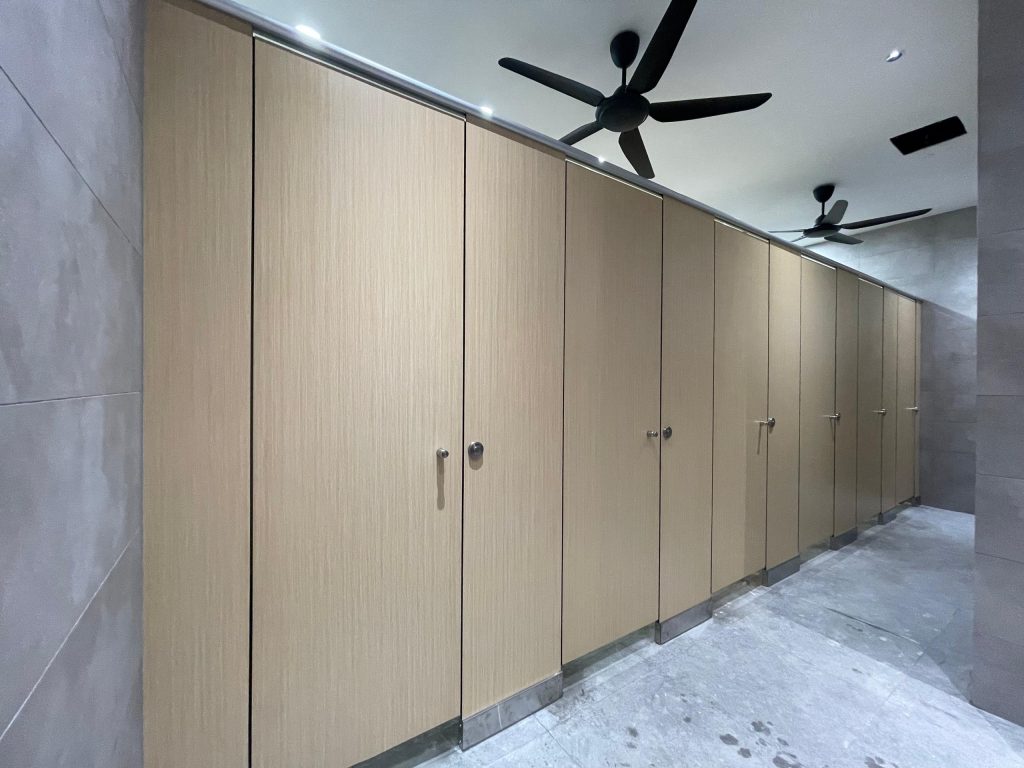

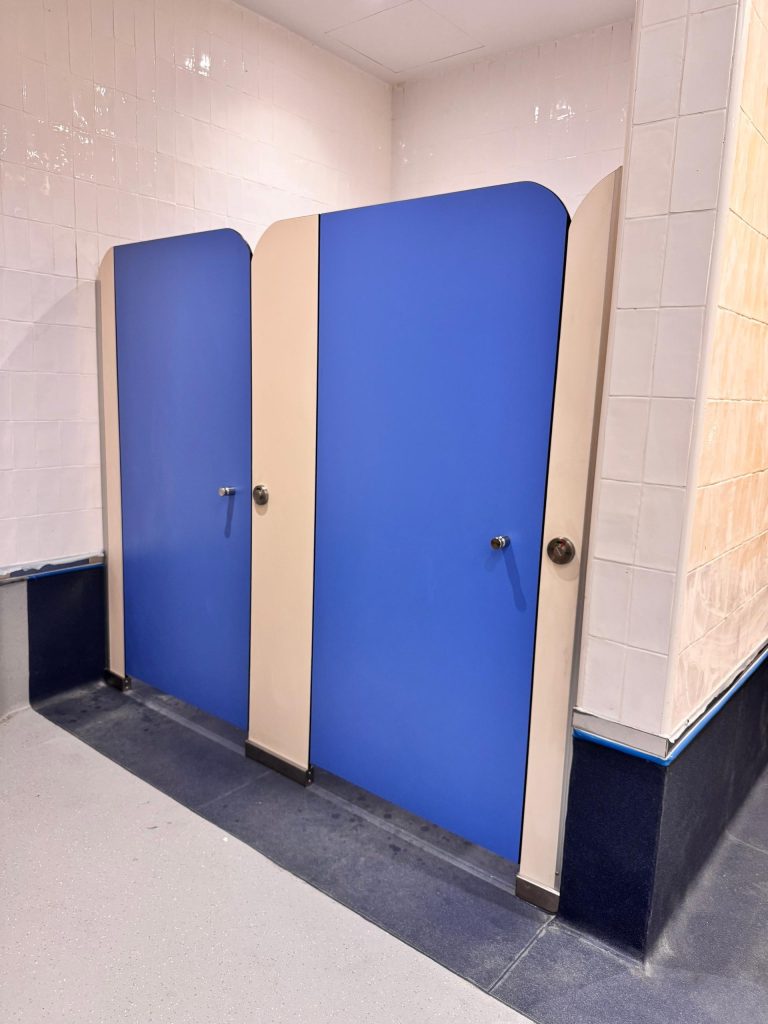

PureBix system is a luxury cubicle system model consists of 10/12mm thickness of phenolic resin board fabricated into door (rebated), dividing panel and pilaster. The bottom parts are supported by the shoebox and the top parts are supported by the top rail.
Accessories
- Gravity Hinge (SS): QS-GH01
- Indicator Thumbturn (SS): QS-INT326
- Door Knob: QS-DN01
- Coat Hook with stopper (SS): QS-CHO2
- Shoebox: QS-SH01
- Aluminium U-Channel (NA): QA-UC02
- Aluminium Top Rail (NA): QA-TR02
*Accessories either Stainless Steel or Nylon can be choose
Specifications
StainlessSteel
- Indicator Thumbturn
- Gravity Hinges
- Coat Hook
- Door Knob
- Shoebox
- Aluminium Wall Channel (NA)
- Top Rail (NA)
Nylon
- Indicator Thumbturn
- Gravity Hinges
- Coat Hook
- Door Knob
- Aluminium Shoebox (Black)
- Aluminium Wall Channel (Black)
- Top Rail (Black)
Standard Dimension

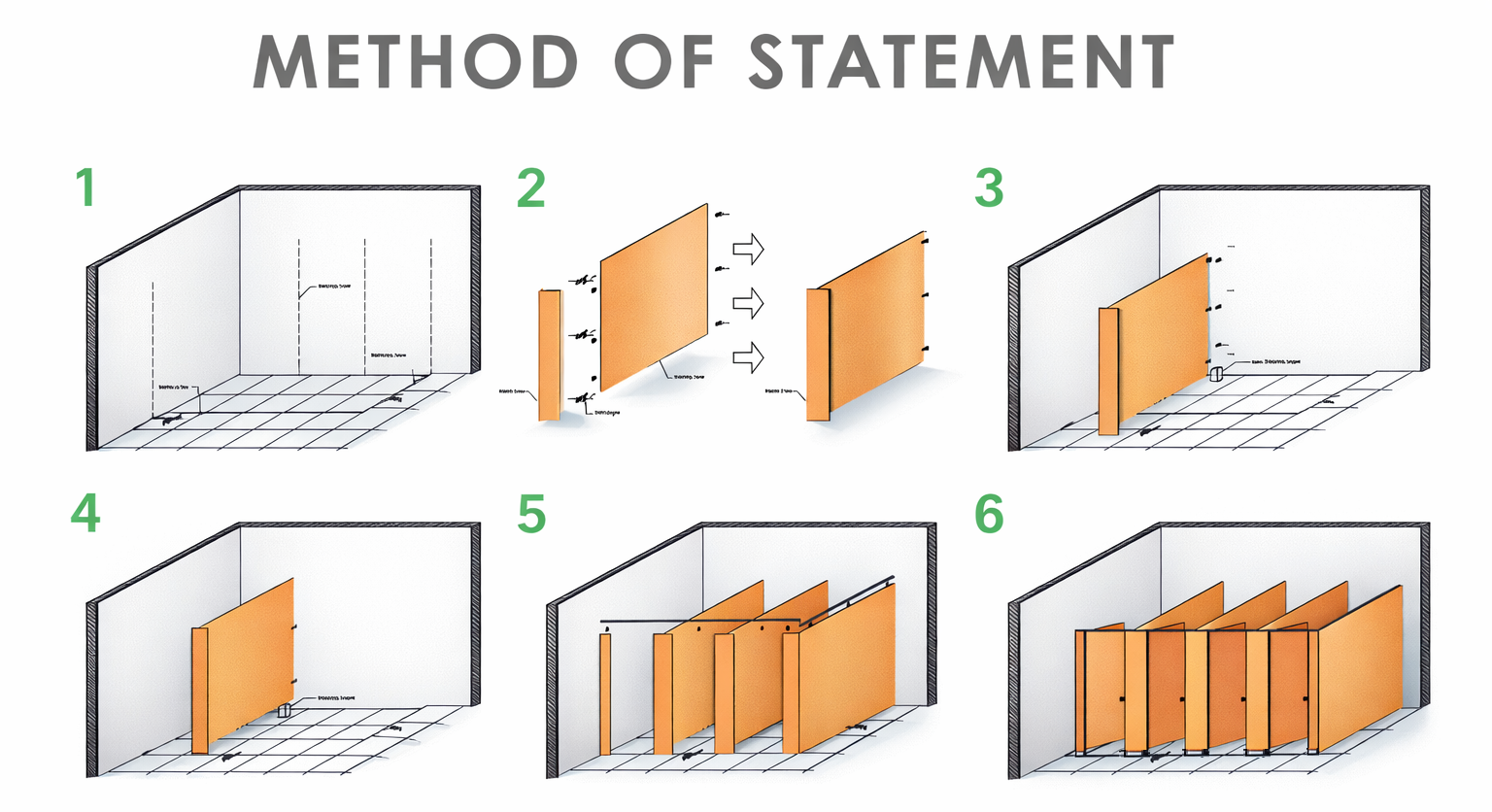

Method of Statment
